三菱PLC-编程口协议

发表于 2020-05-20 更新于 2020-05-27 分类于 PLC 阅读次数：本文字数： 4.9k 阅读时长 ≈ 4 分钟

命令（CMD）	命令码	目标设备
DEVICE READ	“0”	X,Y,M,S,T,C,D
DEVICE WRITE	“1”	X,Y,M,S,T,C,D
FORCE ON	“7”	X,Y,M,S,T,C
FORCE OFF	“8”	X,Y,M,S,T,C

扩展命令	命令码
读配置	“E00”
写配置	“E10”
读程序	“E01”
写程序	“E11”

命令	16进制代码	命令解释
ENQ	05H	通信请求
ACK	06H	PLC正确响应
NAK	15H	PLC错误响应
STX	02H	报文开始
ETX	03H	报文结束

帧格式:
STX CMD DATA …… DATA ETX SUM(upper) SUM(lower)
SUM=CMD+……+ETX

ACK(06H) 接受正確
NAK(15H) 接受錯誤

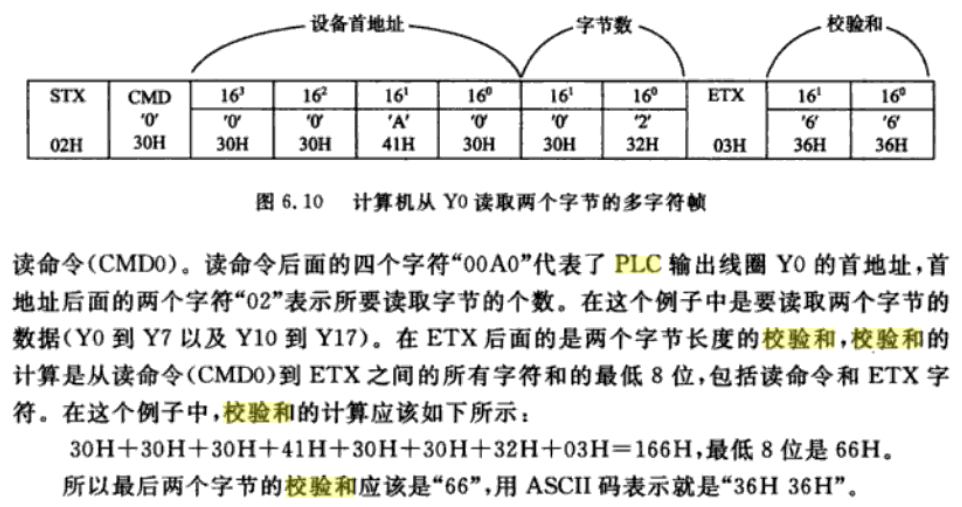

校验和计算

open

Baud Rate: 115200 StopBits: 1, Parity: Even, DataBits: 7

write:05
read :00

发送 05 连接测试返回 06 表示正常，其他失败

关闭使用 9600 重新打开

write:02 30 30 45 30 32 30 32 03 36 43
读取 0E02 处 02 字节（PLC型号）

read :02 30 31 35 46 03 44 46
015F

write:02 30 30 45 43 41 30 32 03 38 45
读取 0ECA 处 02 字节
read :02 43 31 33 46 03 46 30
返回 C13F

write:02 45 30 30 30 45 45 38 30 34 03 46 45
读配置 E00 0EE8 04
read :02 36 30 32 36 38 34 35 43 03 42 35
返回 6026845C

write:02 45 31 30 30 45 45 43 30 34 41 33 34 37 39 32 38 34 03 43 30
写配置 E10 0EEC 04 A3479284

write:02 41 35 03 37 39
read :06

write:A5
read :06

重新打开串口 115200
write:05
read :06

write:02 30 30 45 30 32 30 32 03 36 43
读取 0E02 处 02 字节
read :31 30 31 35 46 03 44 46
1015F ? 这个回复有异常

write:02 30 30 45 43 41 30 32 03 38 45
read :02 43 31 33 46 03 46 30

读取 0ECA 处 02 字节
返回 C13F

write:02 30 30 45 30 32 30 32 03 36 43
read :02 30 31 35 46 03 44 46

读取 0E02 处 02 字节
返回 015F

read :02 43 31 33 46 03 46 30
返回 C13F

write:02 45 30 31 38 30 30 30 30 32 03 44 33
read :02 31 30 30 30 03 43 34
读程序 E01 8000 02
返回 1000

write:02 45 30 31 38 30 34 34 30 43 03 45 43
read :02 30 30 30 30 30 30 30 30 30 30 30 30 30 30 30 30 30 30 30 30 30 30 30 30 03 38 33
读程序 E01 80440C
返回 000000000000000000000000

write:02 45 30 30 38 30 30 30 46 45 03 46 42
read :02 43 38 30 30 30 31 35 46 30 30 41 30 30 30 30 30 30 30 33 30 30 30 33 30 30 30 38 30 30 31 33 30 30 33 41 30 30 30 44 30 30 31 34 30 30 30 35 30 30 31 34 30 30 30 33 30 30 30 41 30 30 30 30 30 30 31 38 30 30 30 30 30 30 30 30 30 30 30 30 30 30 30 30 30 30 30 30 30 30 30 30 30 30 30 30 30 30 30 30 30 30 30 30 30 30 30 30 30 30 30 30 30 30 30 30 30 30 30 30 30 30 30 30 30 30 30 30 30 30 30 30 30 30 30 30 30 30 46 46 46 46 46 46 46 46 46 46 46 46 46 46 46 46 46 46 46 46 46 46 46 46 46 46 46 46 46 46 46 46 30 30 30 30 46 46 46 46 30 30 30 30 30 30 30 30 30 30 30 30 30 30 30 30 30 30 30 30 30 30 30 30 30 30 30 30 30 30 30 30 30 30 30 30 30 30 30 30 30 30 30 30 30 30 30 30 33 39 31 38 30 30 30 30 30 30 30 30 30 30 30 30 30 30 30 30 30 30 30 30 30 30 30 30 30 30 30 30 46 34 30 31 30 30 30 30 30 30 30 30 30 30 30 30 30 30 30 30 30 30 30 30 30 30 30 30 30 30 30 30 30 30 30 30 30 30 30 30 30 30 30 30 30 30 30 30 30 30 30 30 30 30 30 30 30 30 30 30 30 30 30 30 30 30 30 30 30 30 30 30 30 30 30 30 30 30 30 30 30 30 30 30 30 30 30 30 30 30 30 30 30 30 30 30 30 30 30 30 30 30 30 30 30 30 30 30 30 30 30 30 30 30 30 30 30 30 30 30 30 31 31 35 43 31 33 46 34 30 30 30 30 30 30 30 30 30 30 30 30 30 30 30 30 30 30 30 30 30 30 30 30 30 30 30 30 30 30 30 30 30 30 30 30 30 30 30 30 30 30 30 30 30 30 30 30 30 30 30 30 30 30 30 36 30 32 36 38 34 35 43 41 33 34 37 39 32 38 30 41 36 30 30 30 30 30 30 30 30 30 30 30 30 30 30 30 32 30 30 30 33 30 30 30 30 30 30 03 31 34

读配置 E00 8000 FE
返回 C800015F00A00000003000300080013003A000D0014000500140003000A000000180000000000000000000000000000000000000000000000000000000000000000000000FFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFF0000FFFF00000000000000000000000000000000000000000000000039180000000000000000000000000000F401000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000115C13F400000000000000000000000000000000000000000000000000000006026845CA3479280A600000000000000020003000000

write:02 45 30 30 38 30 46 45 30 32 03 46 44
read :02 30 30 30 30 03 43 33
读配置 E00 80FE 02
返回 0000

write:02 30 30 45 30 32 30 32 03 36 43
read :02 30 31 35 46 03 44 46
读取 0E02 处 02 字节
返回 015F

write:02 30 30 45 43 41 30 32 03 38 45
read :31 43 31 33 46 03 46 30
读取 0ECA 处 02 字节
返回 1 C13F

获取 CPU 类型

write:02 30 30 45 30 32 30 32 03 36 43
read :02 30 31 35 46 03 44 46

write 解析:
0 DEVICE READ
0E02 地址 0E02H 处 PLC型号和系统版本号
02 02H 字节数据

read 解析：
返回 015F （FX3UC）

write:02 30 30 45 43 41 30 32 03 38 45
read :02 43 31 33 46 03 46 30

读取 0ECA 处 02 字节
返回 C13F 序列器机种名/版本

FX3UC
F3

读取 D0

write:02 46 35 30 31 31 30 34 30 30 30 03 30 34
read :02 39 37 33 35 03 44 42
write:F5 0110 4000

02 30 42 30 30 03 44 35

写 D0
write:02 45 31 30 34 30 30 30 30 32 30 43 30 30 03 41 32
read :06
E10 4000 02 0C00
命令-地址-长度-数值（小端模式）

读 D1
write:02 46 35 30 31 31 30 34 30 30 32 03 30 36

F5 0110 4002

02 46 35 30 31 31 30 34 30 43 38 03 31 46
F5 0110 40C8

写 D1
write:02 45 31 30 34 30 30 32 30 32 30 42 30 30 03 41 33
E10 4002 02 0B00
read : 06

读 D0-D9 10个字节
write:02 45 30 30 34 30 30 30 31 34 03 44 31

E00 4000 14

write:02 45 30 30 34 30 30 30 31 34 03 44 31
E00 4000 14

02 45 30 30 34 30 30 30 32 38 03 44 36

写多条

02 45 31 30 34 30 30 32 31 34 30 30 30 30 30 30 30 30 30 30 30 30 30 30 30 30 30 30 30 30 30 30 30 30 30 30 30 30 30 30 30 30 30 30 30 30 30 30 30 30 03 35 34
E10 4002 14 0000000000000000000000000000000000000000

D0 写入 20个字节
write:02 45 31 30 34 30 30 30 32 38 31 34 31 34 31 34 31 34 31 34 43 44 43 44 43 44 43 44 43 44 43 44 43 44 43 44 43 44 43 44 43 44 43 44 43 44 43 44 43 44 43 44 43 44 43 44 43 44 43 44 43 44 43 44
E10 4000 28 1414141414CDCDCDCDCDCDCDCDCDCDCDCDCDCDCDCDCDCDCDCDCDCD

02 45 31 30 34 30 30 30 32 38 30 39 30 39 30 39 30 39 30 39 30 39 30 39 30 39 30 39 30 39 30 39 30 39 30 39 30 39 30 39 30 39 30 39 30 39 30 39 30 39 30 39 30 39 30 39 30 39 30 39 30 39 30 39

E10 4000 28 090909090909090909090909090909090909090909090909090909

D1 写入 10个字节
02 45 31 30 34 30 30 32 31 34 30 39 30 39 30 39 30 39 30 39 30 39 30 39 30 39 30 39 30 39 30 39 30 39 30 39 30 39 30 39 30 39 30 39 30 39 30 39 30 39 03 30 38
E10 4002 14 0909090909090909090909090909090909090909

读 10 个字节
02 45 30 30 34 30 30 32 31 34 03 44 33
E00 4002 14

02 30 39 30 39 30 39 30 39 30 39 30 39 30 39 30 39 30 39 30 39 30 39 30 39 30 39 30 39 30 39 30 39 30 39 30 39 30 39 30 39 03 33 37
0909090909090909090909090909090909090909

读 20 个字节
02 45 30 30 34 30 30 30 32 38 03 44 36

02 34 38 30 39 30 39 30 39 30 39 30 39 30 39 30 39 30 39 30 39 30 39 30 39 30 39 30 39 30 39 30 39 30 39 30 39 30 39 30 39 30 39 30 39 30 39 30 39 30 39 30 39 30 39 30 39 30 39 30 39 30 39 30 39 30 39 30 39 30 39 30 39 30 39 30 39 30 39 30 39 03 36 45

48 090909090909090909090909090909090909090909090909090909090909090909090909090909

write:02 45 31 30 34 30 30 32 30 32 30 39 30 30 03 39 41

E10 4002 02 0900

write:02 45 31 30 34 30 30 34 30 32 30 38 30 30 03 39 42

E10 4004 02 0800

write:02 45 31 30 34 30 30 36 30 32 30 37 30 30 03 39 43

E10 4006 02 0700
