wpf-布局

grid

When you define a column in a WPF grid you can set the width to one of three possible values:

• A fixed width,
• Auto – column will become as wide as necessary to fit its children, or
• • (star) take up any available remaining space

The * is prefixed by a number (default is 1 if no number is specified). The available space is divided among the starred columns in proportion to the prefix number.

<Grid.ColumnDefinitions>
  <ColumnDefinition Width="0.07*"/>
  <ColumnDefinition Width="0.93*"/>
</Grid.ColumnDefinitions>

The first column will get 7% of the total space available and the second column would get 93%.

支持属性

<Grid.ColumnDefinitions>
    <ColumnDefinition Width="*"/>
    <ColumnDefinition Width="*"/>
</Grid.ColumnDefinitions>

<Grid.RowDefinitions>
    <RowDefinition Height="*"/>
    <RowDefinition Height="*"/>
</Grid.RowDefinitions>

代码修改高度

Application.Current.MainWindow.Height = 90;
gdMain.RowDefinitions[2].Height = new GridLength(25);

跨列

<Grid>
        <Grid.ColumnDefinitions>
                <ColumnDefinition Width="1*" />
                <ColumnDefinition Width="1*" />
        </Grid.ColumnDefinitions>
        <Grid.RowDefinitions>
                <RowDefinition Height="*" />
                <RowDefinition Height="*" />
        </Grid.RowDefinitions>
        <Button>Button 1</Button>
        <Button Grid.Column="1">Button 2</Button>
        <Button Grid.Row="1" Grid.ColumnSpan="2">Button 3</Button>
</Grid>

stackpanel

defualt is vertical alinment

水平、垂直排列

<StackPanel Margin="8" Orientation="Horizontal">
   <Button MinWidth="93">OK</Button>
   <Button MinWidth="93" Margin="10,0,0,0">Cancel</Button>
</StackPanel>

<StackPanel Orientation="Horizontal" Grid.Row="0">
    <StackPanel.Resources>
        <Style TargetType="TextBlock">
            <Setter Property="FontSize" Value="16"/>
        </Style>
        <Style TargetType="TextBox">
            <Setter Property="FontSize" Value="16"/>
        </Style>
    </StackPanel.Resources>
    <Button x:Name="btn_test1" Margin="10 5 5 5" Width="75" Click="btn_test1_Click">test1</Button>
    <Button x:Name="btn_test2" Margin="10 5 5 5" Width="75" Click="btn_test2_Click">test2</Button>
    <Button x:Name="btn_test3" Margin="10 5 5 5" Width="75" Click="btn_test3_Click">test3</Button>
    <Button x:Name="btn_add_row" Margin="10 5 5 5" Width="75" Click="btn_add_row_Click">增加</Button>
    <TextBox Name="add_count" Width="55" Height="35" VerticalContentAlignment="Center">1</TextBox>
    <Label Width="55" Height="35" VerticalContentAlignment="Center">行</Label>
    <Button x:Name="btn_delete_rows" Margin="10 5 5 5" Width="75" Click="btn_delete_rows_Click">删除</Button>
</StackPanel>

wrapPanel

控件不足时自动换行、换列

放在 datagrid 里面时用 auto 就可以自动调节高度了

<Window x:Class="WpfTutorialSamples.Panels.WrapPanel"
        xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"
        xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml"
        Title="WrapPanel" Height="300" Width="300">
	<WrapPanel>
		<Button>Test button 1</Button>
		<Button>Test button 2</Button>
		<Button>Test button 3</Button>
		<Button Height="40">Test button 4</Button>
		<Button>Test button 5</Button>
		<Button>Test button 6</Button>
	</WrapPanel>
</Window>

dockPanel

top、left、right、bottom

lastChildFill 最后一个元素 填充剩余空间，默认是 true

<DockPanel LastChildFill="False">
    <StackPanel DockPanel.Dock="Top" Orientation="Horizontal" Height="35" >
        <Button x:Name="btn_config" Margin="4"   Click="btn_config_Click">配置</Button>
        <Button x:Name="btn_start" Margin="4" Click="btn_start_Click">启动</Button>
        <Button x:Name="btn_stop" Margin="4" Click="btn_stop_Click">停止</Button>
    </StackPanel>
</DockPanel>

uniformGrid

指定行、列数，不允许单独设置容器大小。

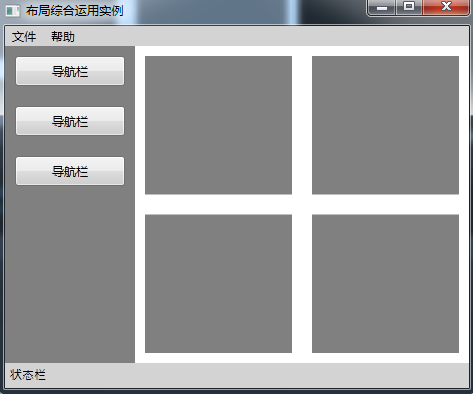

布局综合运用

<Window x:Class="WPFLayoutDemo.MainWindow"
        xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"
        xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml"
        WindowStartupLocation="CenterScreen"
        Title="布局综合运用实例" Height="400" Width="480">
    <DockPanel Width="Auto" Height="Auto" LastChildFill="True">
        <!--顶部菜单区域-->
        <Menu Width="Auto" Height="20" Background="LightGray" DockPanel.Dock="Top">
            <!--File菜单项-->
            <MenuItem Header="文件">
                <MenuItem Header="保存"/>
                <Separator/>
                <MenuItem Header="退出"/>
            </MenuItem>
            <!--About 菜单项-->
            <MenuItem Header="帮助">
                <MenuItem Header="关于本产品"/>
            </MenuItem>
        </Menu>

        <!--状态栏-->
        <StackPanel Width="Auto" Height="25" Background="LightGray" Orientation="Horizontal" DockPanel.Dock="Bottom">
            <Label Width="Auto" Height="Auto" Content="状态栏" FontFamily="Arial" FontSize="12"/>
        </StackPanel>
        <!--Left-->
        <StackPanel Width="130" Height="Auto" Background="Gray" DockPanel.Dock="Left">
            <Button Margin="10" Width="Auto" Height="30" Content="导航栏"/>
            <Button Margin="10" Width="Auto" Height="30" Content="导航栏"/>
            <Button Margin="10" Width="Auto" Height="30" Content="导航栏"/>
        </StackPanel>

        <!--Right-->
        <Grid Width="Auto" Height="Auto" Background="White">

            <Grid.ColumnDefinitions>
                <ColumnDefinition Width="*"/>
                <ColumnDefinition Width="*"/>
            </Grid.ColumnDefinitions>

            <Grid.RowDefinitions>
                <RowDefinition Height="*"/>
                <RowDefinition Height="*"/>
            </Grid.RowDefinitions>

            <Rectangle Fill="Gray" Margin="10,10,10,10" Grid.Row="0" Grid.Column="0"/>
            <Rectangle Fill="Gray" Margin="10,10,10,10" Grid.Row="0" Grid.Column="1"/>
            <Rectangle Fill="Gray" Margin="10,10,10,10" Grid.Row="1" Grid.Column="0"/>
            <Rectangle Fill="Gray" Margin="10,10,10,10" Grid.Row="1" Grid.Column="1"/>
        </Grid>
    </DockPanel>

</Window>
